ACE WELD Bench Type Electrode Oven

BENCH TYPE ELECTRODE OVEN designed for re-baking, re-conditioning and holding of welding electrode for high quality weld.with build in temperature gauge & adjustable thermostat control.

WhatsApp Enquiry
Compare
Categories: , Tags: ,

SPECIFICATION

  • Drive off Moisture & get better Weld.
  • Beware of Electrode Coating with more than 20% Moisture, Welding release Hydrogen, Hydrogen promotes cracking.
  • Tubular twin Heating Element struts on bottom of Oven providing Circular shape heats interior evenly.

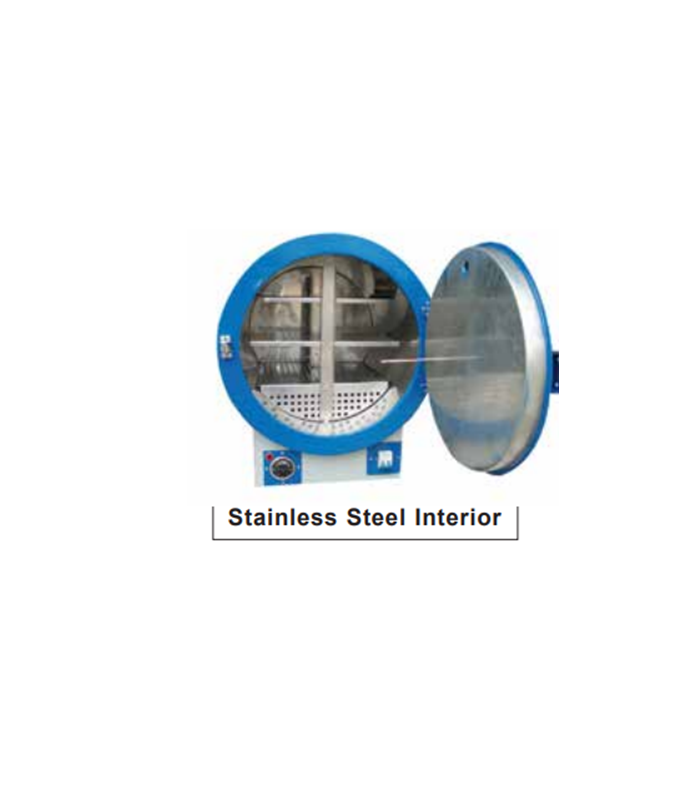

  • Stainless Steel interior body Prevent Rust and Iron Free.
  • Removable shelves for the drying of wire coil & pre-heat / post-heat of welded parts.
  • Adjustable Temperature Control with Pilot light indicates Heat On.

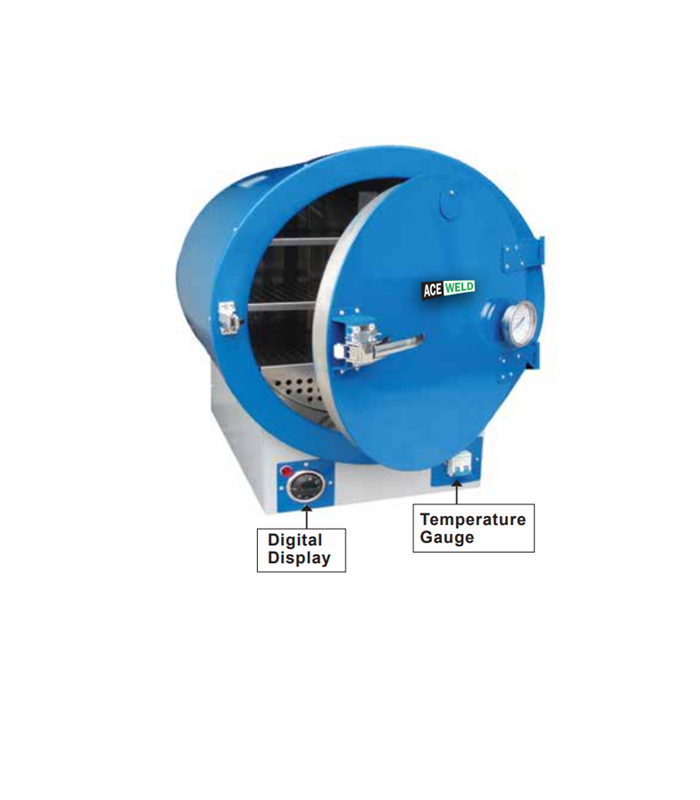

  • Build in Analog Control with Temperature Gauge or Digital Display.
DESCRIPTION
BENCH TYPE OVEN (BM 151H)
Capacity (Rod Lgth.450mm) 155 kgs (estimate)
Temperature Range
(Average Stabilized)		 50º C ~ 300º C (Analog)
(122º F ~ 572º F)
Input Voltage (Heating Element) 1ph,AC 190 ~ 240 V -50/60hz(1800 W)
External Dimension 610 x 735 x 570mm
(24”x 29”x 22.5”)
Internal Dimension dia. x deep 455 x 520mm
(18”x 20.5”)
Body Insulation(Rock wool) 50mm / 2”
Net Weight 41 Kgs (90 lbs)
