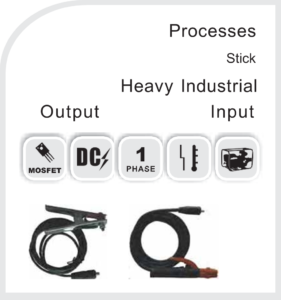

Package Includes
- Inverter power source
- Electrode clamp, 3m
- Earth clamp, 3m
Optional Accessories
- Fast plug
- Wrench
- Helmet
Features
- New technology to maximizing thermal dissipation with 4 separated
heat sinks. - VRD adjustable.
- Arc force adjustable.
- Self-adaptive Hot start built-in, Anti-sticking.
- Recommend for 4.0mm and 5.0mm electrode.
- Suitable for acid electrode, basic electrode and cellulosic electrode.
| Model | Input voltage/ Phase/ Frequency | Output current / Voltage/ Duty cycle
(40℃) |
Amps Input at Rated Output | Output range/ OCV | Dimension | Weight |

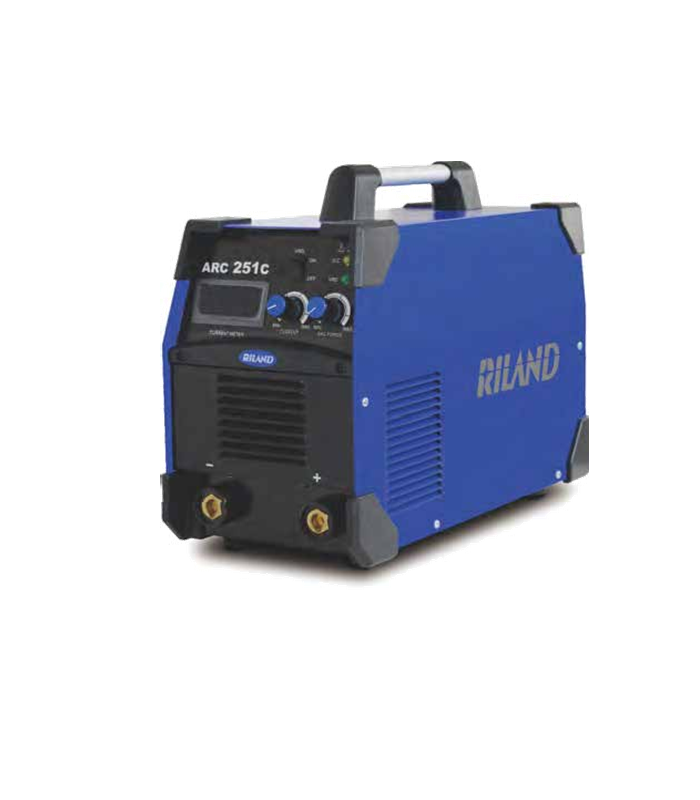

| ARC215C | 220V/ 1P/ 50-60Hz | 230A/ 29.2V/ 30% 160A/ 26.4V/ 100% |
47A@230A | 30-230A/ 65V/15v(VRD) | 472*203*357 mm | 8.5kg |
