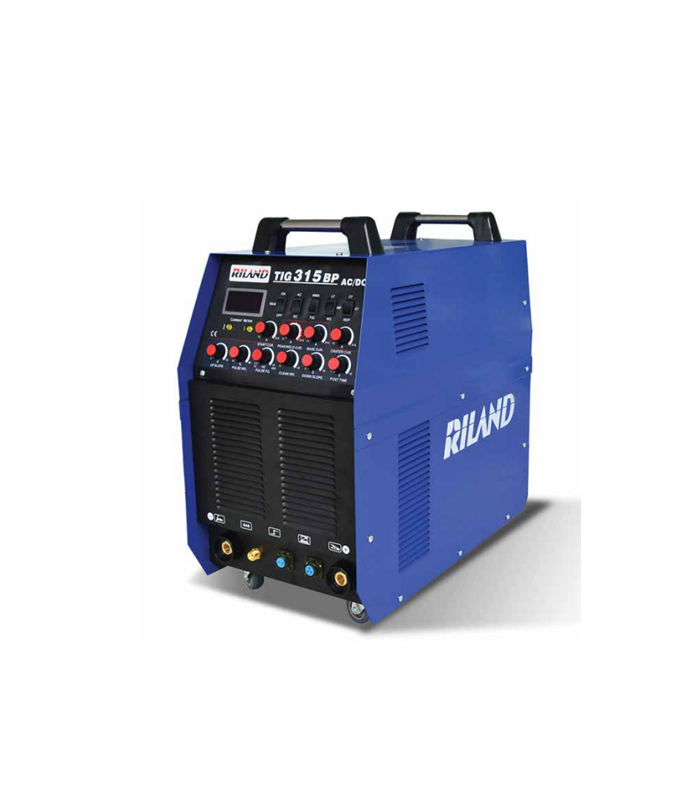

RILAND Pulse TIG 315BPAC/DC

Name: RILAND Pulse TIG 315BPAC/DC - Chemtools (M) Sdn Bhd
Availability: InStock

Multi-Process, Precision,Premium Welding Solution
The Pulse AC/DC 200 and 315 are both technologically advanced and ruggedly constructed, and tested for useing in most production or fabrication environment, including tough shipbuilding application.

Compare

Advanced inverter technology delivers superior TIG performance.
Untouch Start DC TIG operation allows you to strike the arc easily with high frequency,and makes it easy to establish an arc under a variety of conditions.
Pulse Width, Pulse Frequency, AC Blance, Up Slope and Down Slope Function Adjustable.
Automatic Hot Start boosts the current duringthe beginning of making an arc striking easier.
2T/4T and Repeat Function Selectable on the front panel.
Remote Control Function Ready! – Remotely control your current level with a foot controllor
Auto-Protection against over-voltage,over-current and over-heated.
Energy Saving – More efficient compared with the traditional TIG machine.

Model	Input voltage/ Phase/ Frequency	Output current / Voltage/ Duty cycle	Amps Input at Rated Output	Output range/ OCV	Dimension	Weight
TIG315BPAC/ DC	415V/ 3P/ 50- 60HZ	TIG: 315A/22.6A/60%@25℃ 245A/ 19.8V/ 100%@25℃ M M A:250A/ 30V/ 60%@25℃ 195A/ 27.8V/ 100%@25℃	15A@315 (TIG) 14A@250A(M M A)	10-315A/56V (TIG) 30- 250A/ 56V(MMA)	616× 326× 620(mm )	39kg
