Processes
- DC TIG
- AC TIG
- Pulse TIG
- MMA
- Remote Control
Package Includes
- Inverter power source

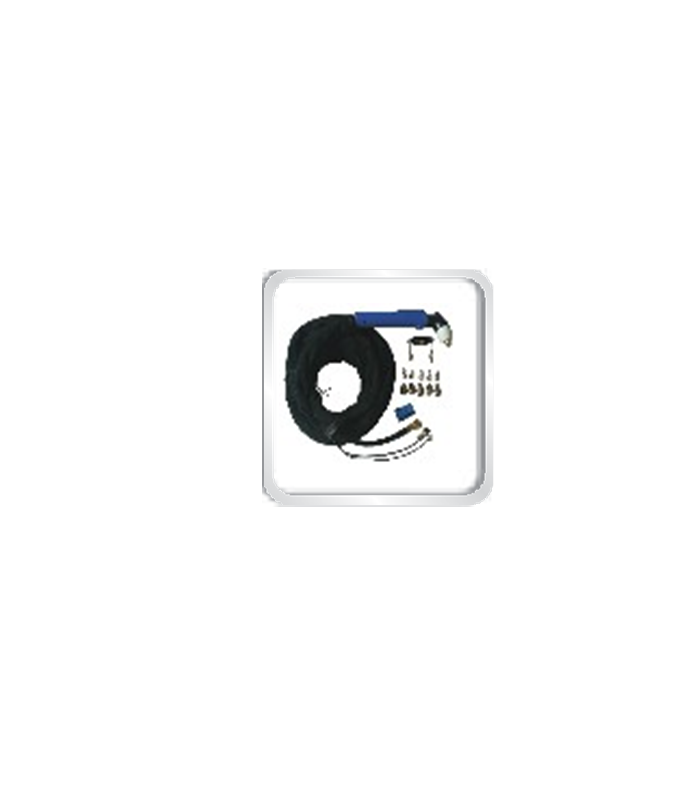

- TIG torch, 4m
- Earth clamp, 3m
- Tungsten electrode
Optional Accessories
- Electrode clamp, 3m
- Foot control pedal
- Helmet
Features
- AC/DC selectable.
- Pulse frequency and pulse width adjustable.
- AC balance adjustable.
- 2T/4T.
- Post-gas adjustable.
- Down-slope adjustable
- Arc-striking current and arc-extinction current adjustable.
- Tri-proof air duct design.

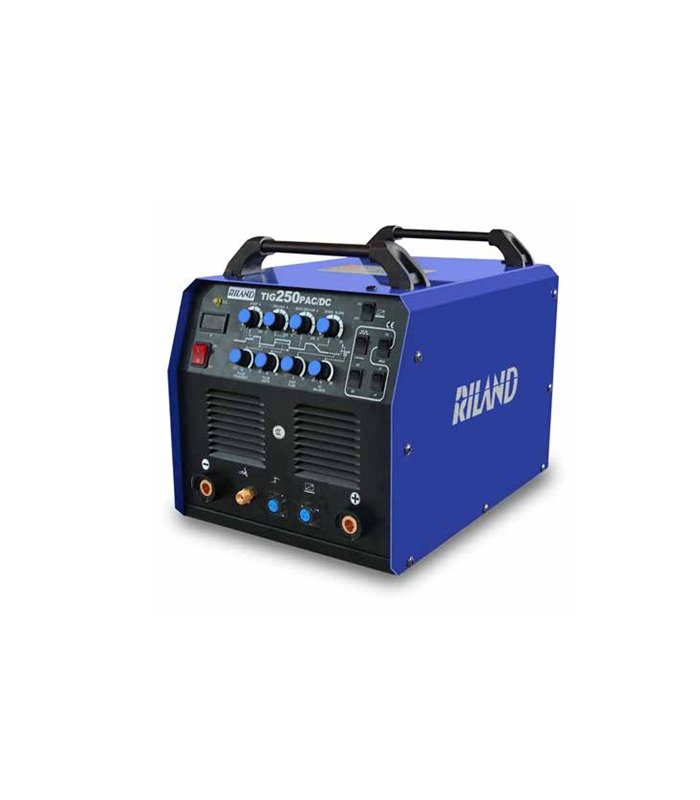

| Model | Input voltage/ Phase/ Frequency | Output current / Voltage/ Duty cycle(40℃) | Amps Input at Rated Output | Output range/ OCV | Dimension(mm) | Weight(kg) |
| TIG 250PAC/DC | 220V/1P/50-60Hz | TIG: 210A/18.4V/30%@40℃ 150A/16V/100%@40℃ MMA: 160A/26.4V/30%@40℃ 120A/24.8V/100%@40℃ |
TIG: 36.5A@210A MMA: 35.4A@160A |
TIG: 10-210A/96V(AC)/68V(DC) MMA: 10-160A/60 |
476*340*402 | 20 |
